springboot整合modbus协议实现数据读取 plc PLC 单片机
管理员
2022-10-29 11:28
```xml <dependency> <groupId>com.intelligt.modbus</groupId> <artifactId>jlibmodbus</artifactId> <version>1.2.9.7</version> </dependency> <dependency> <groupId>com.digitalpetri.modbus</groupId> <artifactId>modbus-master-tcp</artifactId> <version>1.1.0</version> </dependency> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.3</version> <relativePath/> <!-- lookup parent from repository --> </parent>
public class ModbusMasterUtils {
//获取连接
public static ModbusMaster getModbusMaster(String ip,Integer port) {
try {
TcpParameters tcpParameters = new TcpParameters();
//ip
InetAddress adress = InetAddress.getByName(ip);
tcpParameters.setHost(adress);
// TCP设置长连接
tcpParameters.setKeepAlive(true);
// TCP设置端口，这里设置是默认端口502
tcpParameters.setPort(port);
ModbusMaster master = ModbusMasterFactory.createModbusMasterTCP(tcpParameters);
Modbus.setAutoIncrementTransactionId(true);
return master;
}catch (Exception e){
e.printStackTrace();
}
return null;
}
/**
* 读04
* @param master 配置的mater主机
* @param slaveId 从机id
* @param offset 寄存器读取开始地址 0059的话则为58
* @param quantity 读取的寄存器数量
* @return float类型的值
*/
public static List<Float> readInputRegisters(ModbusMaster master,int slaveId,int offset,int quantity){
List<Float> floatList=new ArrayList<>();
try {
if (!master.isConnected()) {
master.connect();// 开启连接
}
// 读取对应从机的数据，readInputRegisters读取的写寄存器，功能码04
int[] registerValues = master.readInputRegisters(slaveId, offset, quantity);
floatList = ByteArrayConveter.getFloatArray(registerValues);
}catch (Exception e) {
e.printStackTrace();
}
return floatList;
}
/**
* 读03
* @param master 配置的mater主机
* @param slaveId 从机id
* @param offset 寄存器读取开始地址 0059的话则为58
* @param quantity 读取的寄存器数量
* @return float类型的值
*/
public static List<Float> readHoldingRegisters(ModbusMaster master,int slaveId,int offset,int quantity){
List<Float> floatList=new ArrayList<>();
try {
if (!master.isConnected()) {
master.connect();// 开启连接
}
// 读取对应从机的数据，readInputRegisters读取的写寄存器，功能码04
int[] registerValues = master.readHoldingRegisters(slaveId, offset, quantity);
floatList = ByteArrayConveter.getFloatArray(registerValues);
}catch (Exception e) {
e.printStackTrace();
}
return floatList;
}
public static void close(ModbusMaster master){
try {
master.disconnect();
}catch (Exception e){
e.printStackTrace();
}
}
}三、总结
这个是能读的，在真实环境
package com.java.util;
import com.intelligt.modbus.jlibmodbus.Modbus;
import com.intelligt.modbus.jlibmodbus.exception.ModbusIOException;
import com.intelligt.modbus.jlibmodbus.exception.ModbusNumberException;
import com.intelligt.modbus.jlibmodbus.exception.ModbusProtocolException;
import com.intelligt.modbus.jlibmodbus.master.ModbusMaster;
import com.intelligt.modbus.jlibmodbus.master.ModbusMasterFactory;
import com.intelligt.modbus.jlibmodbus.tcp.TcpParameters;
import java.net.InetAddress;
public class MasterTCP {
static public void main(String[] args) {
try {
TcpParameters tcpParameters = new TcpParameters();
//tcp parameters have already set by default as in example
//设置TCP的ip地址
tcpParameters.setHost(InetAddress.getByName("192.168.1.88"));
//设置TCP长连接
tcpParameters.setKeepAlive(true);
//设置端口，这里设置是默认端口502
tcpParameters.setPort(Modbus.TCP_PORT);
//创建一个主机
ModbusMaster m = ModbusMasterFactory.createModbusMasterTCP(tcpParameters);
Modbus.setAutoIncrementTransactionId(true);
//从机地址
int slaveId = 1;
//寄存器读取的开始地址
int offset = 200;
//读取的寄存器数量
int quantity = 1;
try {
// since 1.2.8，建立连接
if (!m.isConnected()) {
m.connect();
}
// at next string we receive ten registers from a slave with id of 1 at offset of 0.
//读取对应的从机的数据，readHoldingRegisters读取的保持寄存器，功能码03
int[] registerValues = m.readHoldingRegisters(slaveId, offset, quantity);
//遍历后控制台输出
for (int value : registerValues) {
System.out.println("Address输出: " + offset++ + ", Value: " + value);
}
} catch (ModbusProtocolException e) {
e.printStackTrace();
} catch (ModbusNumberException e) {
e.printStackTrace();
} catch (ModbusIOException e) {
e.printStackTrace();
} finally {
try {
m.disconnect();
} catch (ModbusIOException e) {
e.printStackTrace();
}
}
} catch (RuntimeException e) {
throw e;
} catch (Exception e) {
e.printStackTrace();
}
}
}这个能写真实环境
package com.java.util;
import com.digitalpetri.modbus.FunctionCode;
import com.digitalpetri.modbus.master.ModbusTcpMaster;
import com.digitalpetri.modbus.master.ModbusTcpMasterConfig;
import com.intelligt.modbus.jlibmodbus.Modbus;
import com.intelligt.modbus.jlibmodbus.exception.ModbusIOException;
import com.intelligt.modbus.jlibmodbus.exception.ModbusNumberException;
import com.intelligt.modbus.jlibmodbus.exception.ModbusProtocolException;
import com.intelligt.modbus.jlibmodbus.master.ModbusMaster;
import com.intelligt.modbus.jlibmodbus.master.ModbusMasterFactory;
import com.intelligt.modbus.jlibmodbus.msg.base.ModbusResponse;
import com.intelligt.modbus.jlibmodbus.msg.request.WriteMultipleRegistersRequest;
import com.intelligt.modbus.jlibmodbus.msg.request.WriteSingleRegisterRequest;
import com.intelligt.modbus.jlibmodbus.tcp.TcpParameters;
import java.net.InetAddress;
import java.net.UnknownHostException;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ExecutionException;
public class MasterTCP {
static public void main(String[] args) {
try {
TcpParameters tcpParameters = new TcpParameters();
//tcp parameters have already set by default as in example
//设置TCP的ip地址
tcpParameters.setHost(InetAddress.getByName("192.168.1.66"));
//设置TCP长连接
tcpParameters.setKeepAlive(true);
//设置端口，这里设置是默认端口502
tcpParameters.setPort(Modbus.TCP_PORT);
//if you would like to set connection parameters separately,如果您想单独设置连接参数
// you should use another method:你应该使用另一种方法： createModbusMasterTCP(String host, int port, boolean keepAlive);
//创建一个主机
ModbusMaster m = ModbusMasterFactory.createModbusMasterTCP(tcpParameters);
Modbus.setAutoIncrementTransactionId(true);
//从机地址
int slaveId = 1;
//寄存器读取的开始地址
int offset = 200;
//读取的寄存器数量
int quantity = 1;
try {
// since 1.2.8，建立连接
if (!m.isConnected()) {
m.connect();
}
// at next string we receive ten registers from a slave with id of 1 at offset of 0.
//读取对应的从机的数据，readHoldingRegisters读取的保持寄存器，功能码03
int[] registerValues = m.readHoldingRegisters(slaveId, offset, quantity);
//遍历后控制台输出
for (int value : registerValues) {
System.out.println("Address输出: " + offset++ + ", Value: " + value);
}
//这个可以写进去，但是应该要和读取分开
m.writeMultipleRegisters(1,203,(new int[]{111,222}));
// m.writeSingleRegister(1,203,(长的尺寸的高16位浮点数，低16位浮点数));
// also since 1.2.8.4 you can create your own request and process it with the master
// int offset1 = 100;
// ReadHoldingRegistersRequest request = new ReadHoldingRegistersRequest();
// request.setServerAddress(1);
// request.setStartAddress(offset1);
// request.setTransactionId(0);
// ReadHoldingRegistersResponse response = (ReadHoldingRegistersResponse) m.processRequest(request);
// // you can get either int[] containing register values or byte[] containing raw bytes.
// for (int value : response.getRegisters()) {
// System.out.println("Address: " + offset1++ + ", Value: " + value);
// }

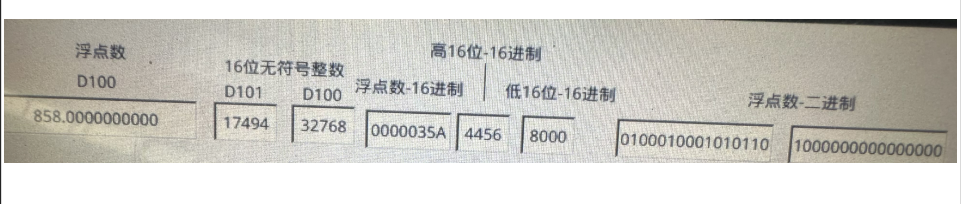

float value = 4333.2f;
int intBits = Float.floatToRawIntBits(value);
m.writeMultipleRegisters(1,100,(new int[]{((intBits >> 16) & 0xFFFF),(intBits & 0xFFFF)}));
// short[] send = new short[]{(short) ((intBits >> 16) & 0xFFFF), (short) (intBits & 0xFFFF)};
} catch (ModbusProtocolException e) {
e.printStackTrace();
} catch (ModbusNumberException e) {
e.printStackTrace();
} catch (ModbusIOException e) {
e.printStackTrace();
} finally {
try {
m.disconnect();
} catch (ModbusIOException e) {
e.printStackTrace();
}
}
} catch (RuntimeException e) {
throw e;
} catch (Exception e) {
e.printStackTrace();
}
}
}联系站长
