layui 格栅系统 布局系统
管理员
2026-01-08 22:11
<!-- 第一个列：sm 屏幕下占 3 列（25% 宽度） -->
<div class="layui-col-sm3">
<div class="layui-col-xs12 layui-col-md8">
<div class="grid-demo grid-demo-bg1">移动：12/12、桌面：8/12</div>
</div>
xs 超小屏幕（手机）<768px 最常用的移动端尺寸 layui-col-xs6（手机占 6 列）
sm 小屏幕（平板）≥768px 平板 / 小屏电脑 layui-col-sm3（平板占 3 列）
md 中等屏幕（桌面）≥992px 常规台式机 / 笔记本 layui-col-md8（桌面占 8 列）
lg 大屏幕（大屏桌面）≥1200px 宽屏显示器 / 大屏设备 layui-col-lg4（宽屏占 4 列）

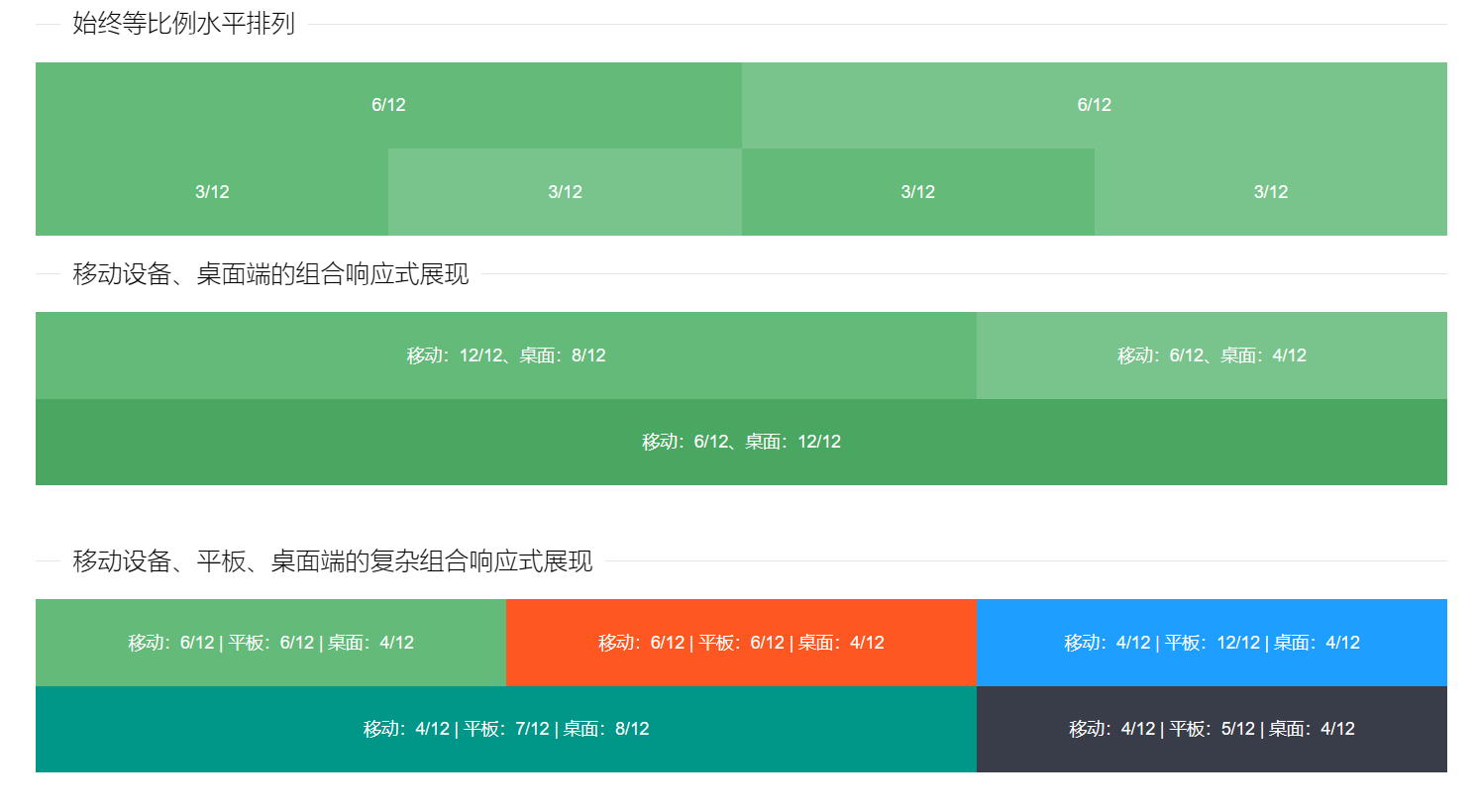

<!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>layui</title> <meta name="renderer" content="webkit"> <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1"> <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1"> <link rel="stylesheet" href="//res.layui.com/layui/dist/css/layui.css" media="all"> <!-- 注意：如果你直接复制所有代码到本地，上述css路径需要改成你本地的 --> </head> <body> <!-- 让IE8/9支持媒体查询，从而兼容栅格 --> <!--[if lt IE 9]> <script src="https://cdn.staticfile.org/html5shiv/r29/html5.min.js"></script> <script src="https://cdn.staticfile.org/respond.js/1.4.2/respond.min.js"></script> <![endif]--> <div class="layui-container"> <blockquote class="layui-elem-quote">注意：下述演示中的颜色只是做一个区分作用，并非栅格内置。</blockquote> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 20px;"> <legend>始终等比例水平排列</legend> </fieldset> <div class="layui-row"> <div class="layui-col-xs6"> <div class="grid-demo grid-demo-bg1">6/12</div> </div> <div class="layui-col-xs6"> <div class="grid-demo">6/12</div> </div> </div> <div class="layui-row"> <div class="layui-col-xs3"> <div class="grid-demo grid-demo-bg1">3/12</div> </div> <div class="layui-col-xs3"> <div class="grid-demo">3/12</div> </div> <div class="layui-col-xs3"> <div class="grid-demo grid-demo-bg1">3/12</div> </div> <div class="layui-col-xs3"> <div class="grid-demo">3/12</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 20px;"> <legend>移动设备、桌面端的组合响应式展现</legend> </fieldset> <div class="layui-row"> <div class="layui-col-xs12 layui-col-md8"> <div class="grid-demo grid-demo-bg1">移动：12/12、桌面：8/12</div> </div> <div class="layui-col-xs6 layui-col-md4"> <div class="grid-demo">移动：6/12、桌面：4/12</div> </div> <div class="layui-col-xs6 layui-col-md12"> <div class="grid-demo grid-demo-bg2">移动：6/12、桌面：12/12</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 50px;"> <legend>移动设备、平板、桌面端的复杂组合响应式展现</legend> </fieldset> <div class="layui-row"> <div class="layui-col-xs6 layui-col-sm6 layui-col-md4"> <div class="grid-demo grid-demo-bg1">移动：6/12 | 平板：6/12 | 桌面：4/12</div> </div> <div class="layui-col-xs6 layui-col-sm6 layui-col-md4"> <div class="grid-demo layui-bg-red">移动：6/12 | 平板：6/12 | 桌面：4/12</div> </div> <div class="layui-col-xs4 layui-col-sm12 layui-col-md4"> <div class="grid-demo layui-bg-blue">移动：4/12 | 平板：12/12 | 桌面：4/12</div> </div> <div class="layui-col-xs4 layui-col-sm7 layui-col-md8"> <div class="grid-demo layui-bg-green">移动：4/12 | 平板：7/12 | 桌面：8/12</div> </div> <div class="layui-col-xs4 layui-col-sm5 layui-col-md4"> <div class="grid-demo layui-bg-black">移动：4/12 | 平板：5/12 | 桌面：4/12</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 50px;"> <legend>常规布局：从小屏幕堆叠到桌面水平排列</legend> </fieldset> <div class="layui-row"> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo grid-demo-bg1">1/12</div> </div> <div class="layui-col-md1"> <div class="grid-demo">1/12</div> </div> </div> <div class="layui-row"> <div class="layui-col-md9"> <div class="grid-demo grid-demo-bg1">75%</div> </div> <div class="layui-col-md3"> <div class="grid-demo">25%</div> </div> </div> <div class="layui-row"> <div class="layui-col-md4"> <div class="grid-demo grid-demo-bg1">33.33%</div> </div> <div class="layui-col-md4"> <div class="grid-demo">33.33%</div> </div> <div class="layui-col-md4"> <div class="grid-demo grid-demo-bg1">33.33%</div> </div> </div> <div class="layui-row"> <div class="layui-col-md6"> <div class="grid-demo grid-demo-bg1">50%</div> </div> <div class="layui-col-md6"> <div class="grid-demo">50%</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 50px;"> <legend>列间隔</legend> </fieldset> <div class="layui-row layui-col-space1"> <div class="layui-col-md3"> <div class="grid-demo grid-demo-bg1">1/4</div> </div> <div class="layui-col-md3"> <div class="grid-demo">1/4</div> </div> <div class="layui-col-md3"> <div class="grid-demo grid-demo-bg1">1/4</div> </div> <div class="layui-col-md3"> <div class="grid-demo">1/4</div> </div> </div> <div class="layui-row layui-col-space5"> <div class="layui-col-md4"> <div class="grid-demo grid-demo-bg1">1/3</div> </div> <div class="layui-col-md4"> <div class="grid-demo">1/3</div> </div> <div class="layui-col-md4"> <div class="grid-demo grid-demo-bg1">1/3</div> </div> </div> <div class="layui-row layui-col-space10"> <div class="layui-col-md9"> <div class="grid-demo grid-demo-bg1">9/12</div> </div> <div class="layui-col-md3"> <div class="grid-demo">3/12</div> </div> </div> <div class="layui-row layui-col-space15"> <div class="layui-col-md7"> <div class="grid-demo grid-demo-bg1">7/12</div> </div> <div class="layui-col-md5"> <div class="grid-demo">5/12</div> </div> </div> <div class="layui-row layui-col-space30"> <div class="layui-col-md7"> <div class="grid-demo grid-demo-bg1">7/12</div> </div> <div class="layui-col-md5"> <div class="grid-demo">5/12</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 50px;"> <legend>列偏移</legend> </fieldset> <div class="layui-row"> <div class="layui-col-md4"> <div class="grid-demo grid-demo-bg1">4/12</div> </div> <div class="layui-col-md4 layui-col-md-offset4"> <div class="grid-demo">偏移4列</div> </div> <div class="layui-col-md1 layui-col-md-offset5"> <div class="grid-demo grid-demo-bg1">偏移5列</div> </div> <div class="layui-col-md1"> <div class="grid-demo">不偏移</div> </div> </div> <div class="layui-row"> <div class="layui-col-md3 layui-col-md-offset3"> <div class="grid-demo grid-demo-bg1">偏移3列</div> </div> <div class="layui-col-md3 layui-col-md-offset1"> <div class="grid-demo">偏移1列</div> </div> </div> <fieldset class="layui-elem-field layui-field-title" style="margin-top: 50px;"> <legend>栅格嵌套</legend> </fieldset> <div class="layui-row"> <div class="layui-col-md5"> <div class="layui-row grid-demo"> <div class="layui-col-md3"> <div class="grid-demo grid-demo-bg1">内部列</div> </div> <div class="layui-col-md9"> <div class="grid-demo grid-demo-bg2">内部列</div> </div> <div class="layui-col-md12"> <div class="grid-demo grid-demo-bg3">内部列</div> </div> </div> </div> <div class="layui-col-md7"> <div class="layui-row grid-demo grid-demo-bg1"> <div class="layui-col-md12"> <div class="grid-demo">内部列</div> </div> <div class="layui-col-md9"> <div class="grid-demo grid-demo-bg2">内部列</div> </div> <div class="layui-col-md3"> <div class="grid-demo grid-demo-bg3">内部列</div> </div> </div> </div> </div> </div> <div class="layui-fluid"> <fieldset class="layui-elem-field layui-field-title"> <legend>流体容器（宽度自适应，不固定）</legend> </fieldset> <div class="layui-row"> <div class="layui-col-sm3"> <div class="grid-demo grid-demo-bg1">25%</div> </div> <div class="layui-col-sm3"> <div class="grid-demo">25%</div> </div> <div class="layui-col-sm3"> <div class="grid-demo grid-demo-bg1">25%</div> </div> <div class="layui-col-sm3"> <div class="grid-demo">25%</div> </div> </div> </div> <script src="//res.layui.com/layui/dist/layui.js" charset="utf-8"></script> <!-- 注意：如果你直接复制所有代码到本地，上述js路径需要改成你本地的 --> </body> </html>
